Equipment description

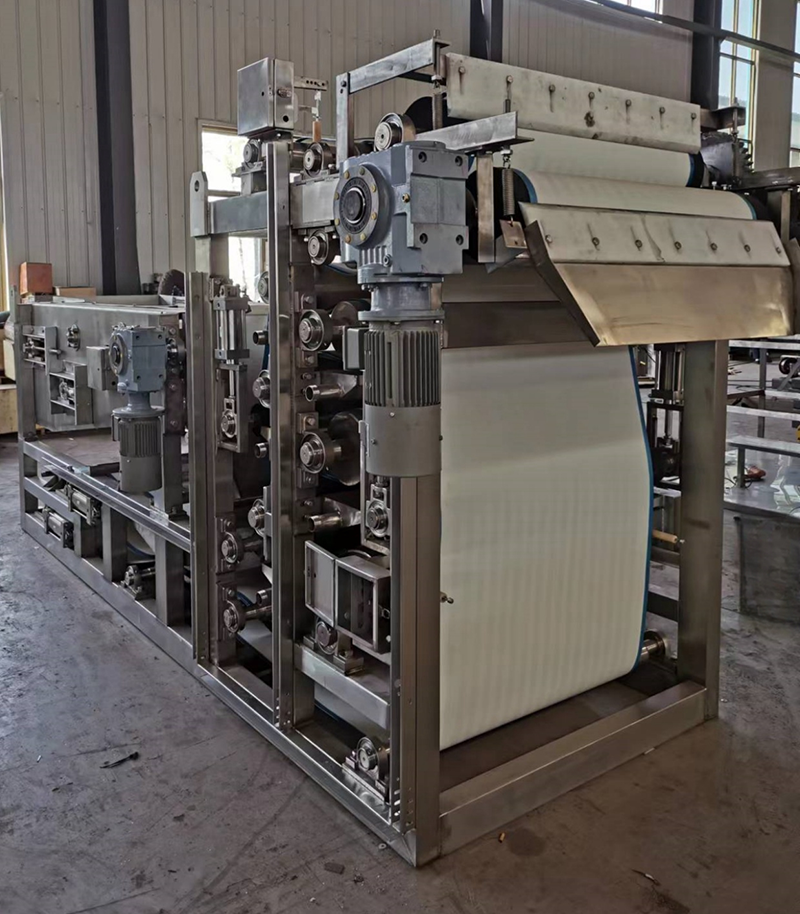

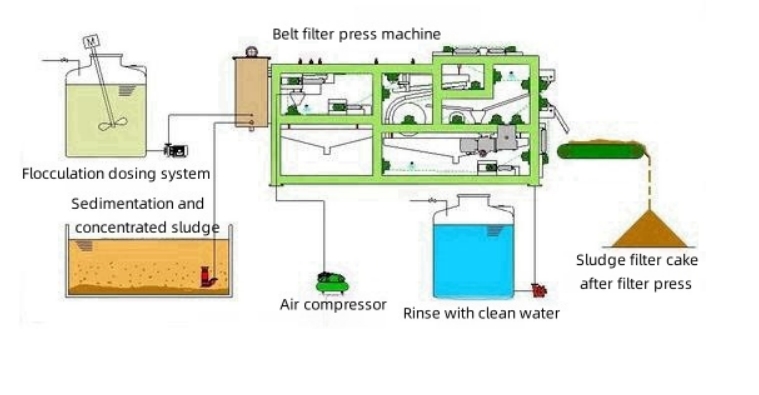

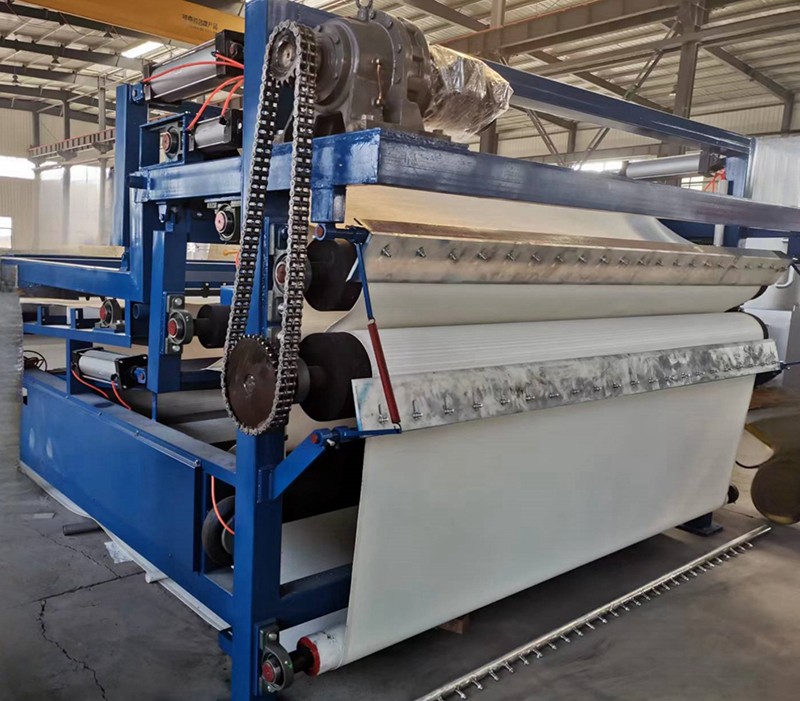

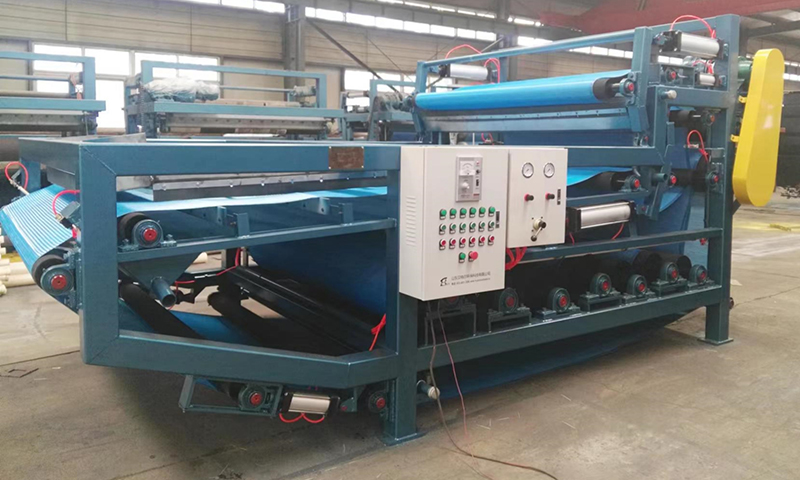

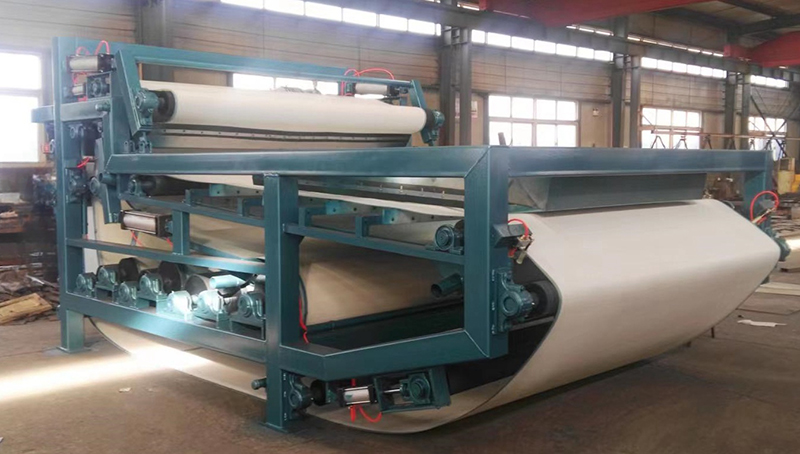

ZMYL series belt filter press is a sludge dewatering equipment developed by absorbing advanced foreign technology. It has the characteristics of large processing capacity, high dehydration efficiency and long service life. As a supporting equipment for sewage treatment, it can filter and dehydrate the suspended matter and sediment treated by the air flotation machine, and press it into cake mud to achieve the purpose of preventing secondary pollution.

Product characteristic

1. Extra long gravity dewatering zone, large load-bearing capacity, strong processing capacity, low energy consumption and low operating cost.

2. Unique oblique extended model area design, more stable operation and large processing capacity.

3. Multi-roller diameter decreasing squeeze rolls, compact layout, high solid content in filter cake.

4. Equipped with a new automatic correction and tightening system, the operation is stable and the service life of the filter belt is greatly extended.

5. Use two independent backwash systems.

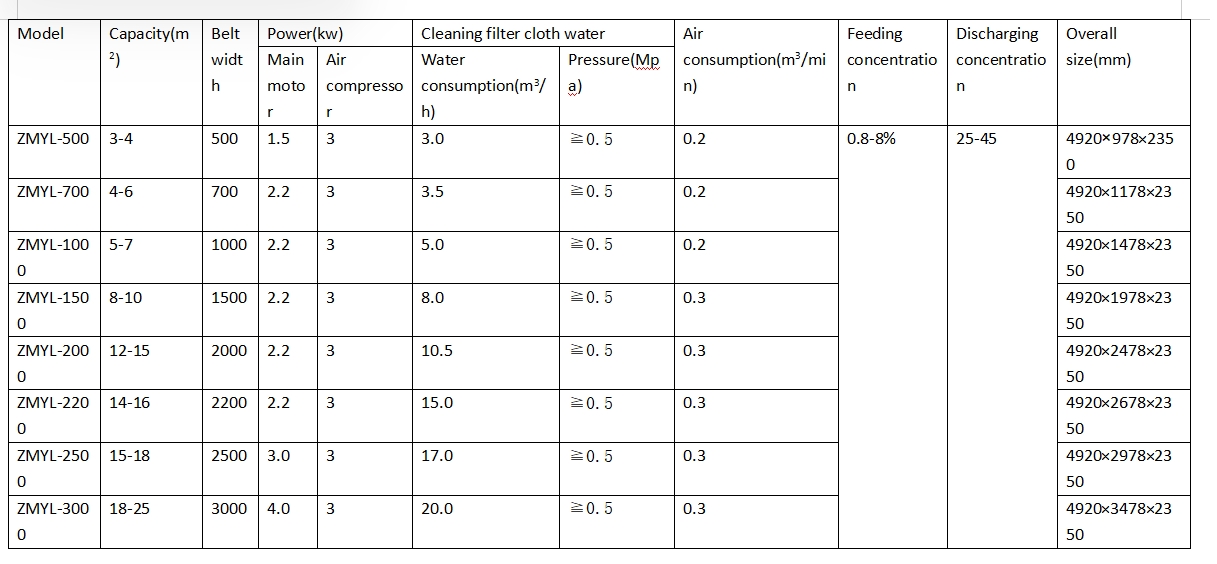

Technical parameters
