MBR wastewater treatment equipment

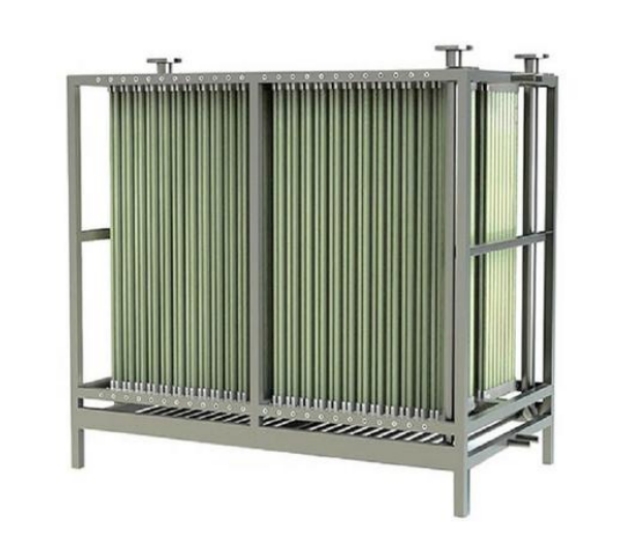

Membrane Biological Reactor that is, membrane biological reactor, is applied to MBR wastewater treatment equipment in the membrane biological treatment technology, by combining membrane separation technology and wastewater biological treatment technology into a system. Membrane bioreactor is a membrane separation technology and activated sludge method combined with a new type of water treatment technology, the application of medium control fiber membrane to replace the activated sludge method in the second sedimentation tank, solid-liquid separation, effectively achieve the purpose of mud-water separation. Making full use of the college retention role, can effectively throttle nitrifying bacteria, completely retained in the bioreactor, so that the nitrification reaction is carried out smoothly, so that the maximum decomposition.
Technical parameter
Equipment size, configuration, can be customized according to requirements | |||
NO. | Equipment Size (L*W*H) | Operating Power | Treatment Capacity m³/H |
1 | 3.0m*1.5m*3.0m | 3.0KW | 0.5m³/H |
2 | 4.5m*1.5m*2.5m | 3.5KW | 1.0m³/H |
3 | 6.5m*2.0m*3.0m | 3.7KW | 2.0m³/H |
4 | 8.5m*2.5m*3.0m | 4.0KW | 3.0m³/H |
5 | 9.5m*2.0m*3.0m | 4.2KW | 4.0m³/H |
6 | 11.0m*2.5m*3.5m | 6.0KW | 5.0m³/H |
7 | 12.0m*3.0m*3.5m | 6.5KW | 7.0m³/H |
MBR advantage
1. Efficient solid-liquid separation, high quality and stable effluent water quality.
2. The remaining sludge output is small.
3. It occupies a small area, does not require a secondary sedimentation tank, and the process equipment is centralized.
4. It can remove ammonia nitrogen and refractory organic matter.
5. Overcome the shortcomings of traditional activated sludge method that are prone to sludge expansion.
6. Convenient operation and management, easy to realize automatic control.
